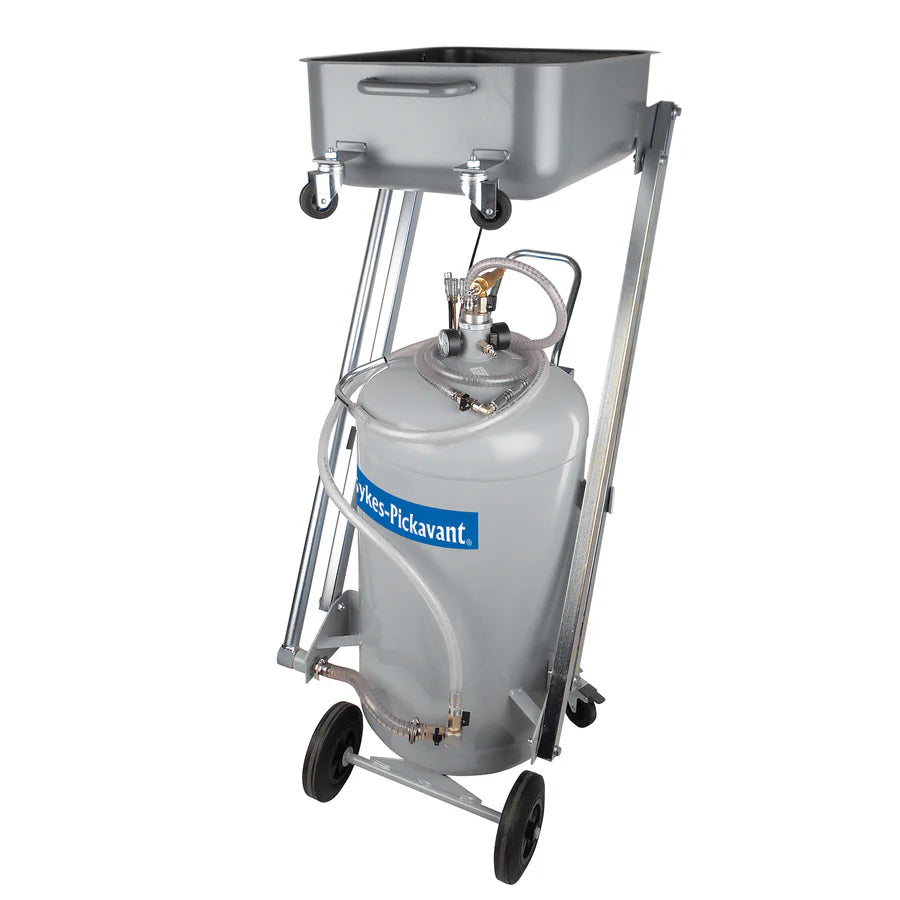

Sykes- Pickavant 120L Oil Extractor with Under-Vehicle Tray

SPECIAL ORDER - PLEASE ENQUIRE

The Sykes Pickavant 53380400 is a robust 120 litre pneumatic oil extractor, engineered for efficient oil removal from heavy-duty vehicles, whether elevated or at ground level. Its versatile under-vehicle tray design facilitates both gravity fed and suction based oil extraction, ensuring adaptability across various service scenarios.

Key Features:

• Dual Extraction Modes: Supports both gravity drainage and pneumatic suction methods, accommodating hot oil extraction (70-80°C) via six included probes tailored for different dipstick diameters.

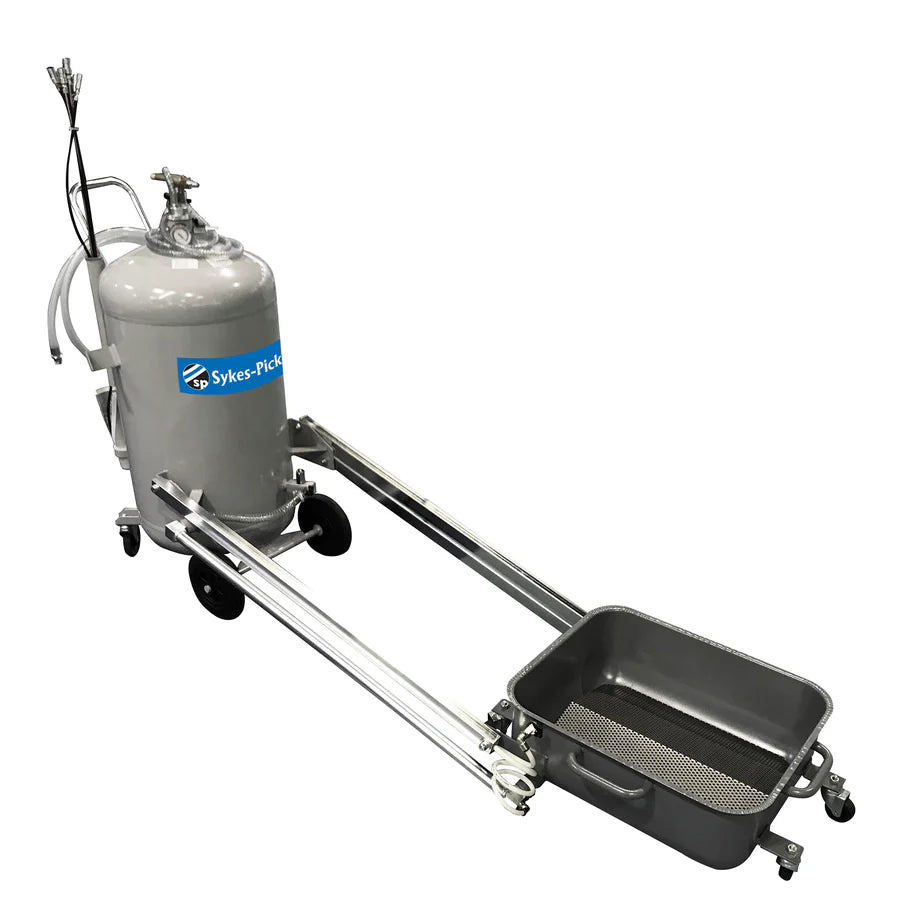

• Under Vehicle Tray: Features a movable tray that can be positioned beneath vehicles or used traditionally above the tank, enhancing operational flexibility.
• Durable Construction: Built with a carbon steel reservoir and finished with an epoxy coating for enhanced durability and resistance to workshop conditions.
• Safety Mechanism: Equipped with a pressure relief valve set at 4 bar, ensuring safe operation during the extraction process.
• Maintenance Friendly: Includes a drain plug for straightforward cleaning and internal inspection.

Technical Specifications:

• Reservoir Capacity: 120 litres
• Tray Capacity: 51 litres
• Air Inlet Connection: 1/4"
• Air Consumption: 200 l/m
• Operating Pressure: 4 bar
• Noise Level: <80 dB
• Weight: 83 Kgs

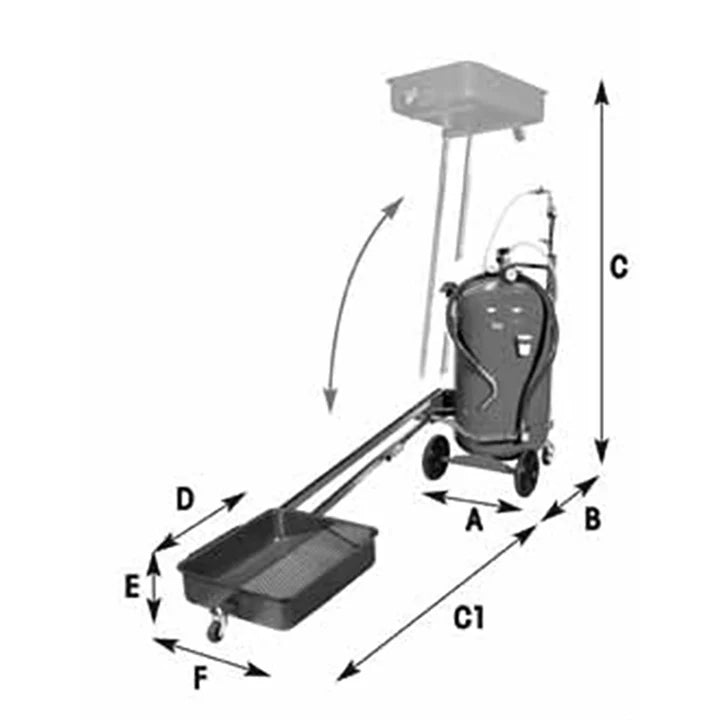

Dimensions (mm)

• A - 660 mm
• B - 780 mm
• C - 1520 mm
• C1 - 2140 mm

• D - 590 mm

• E - 220 mm

• F - 492 mm
