Sykes-Pickavant Pneumatic Coil Spring Compressor Workstation

SPECIAL ORDER - PLEASE ENQUIRE

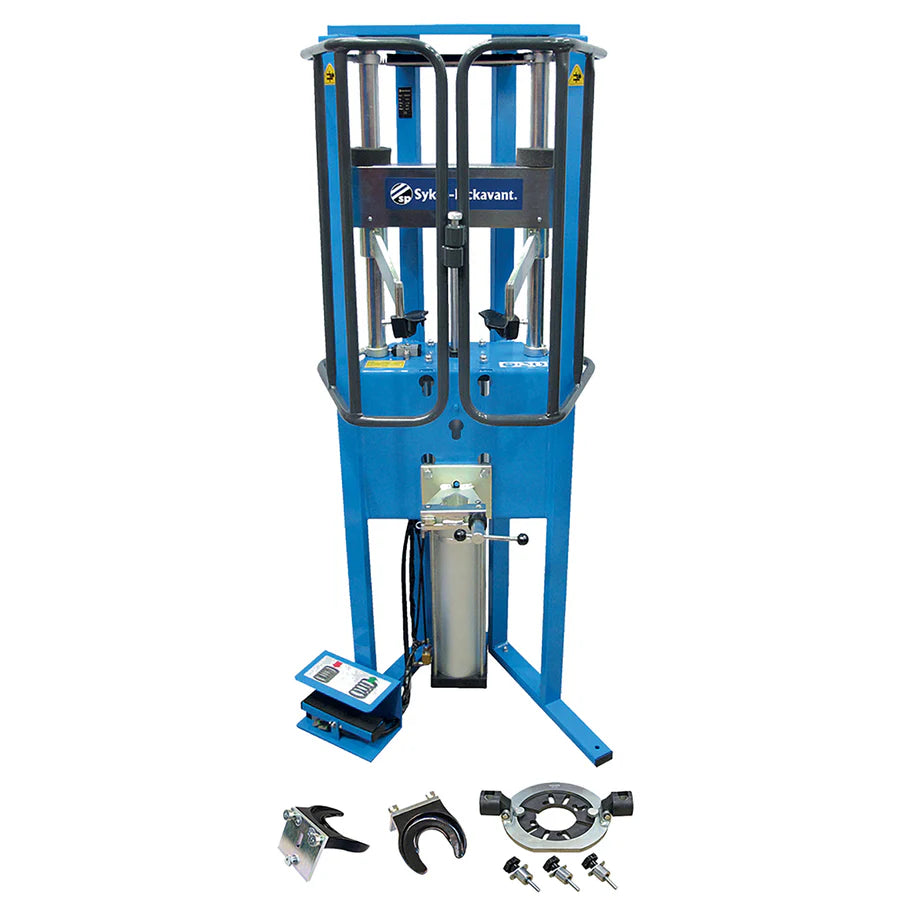

Pneumatic Coil Spring Compressor Workstation with Upper Bracket

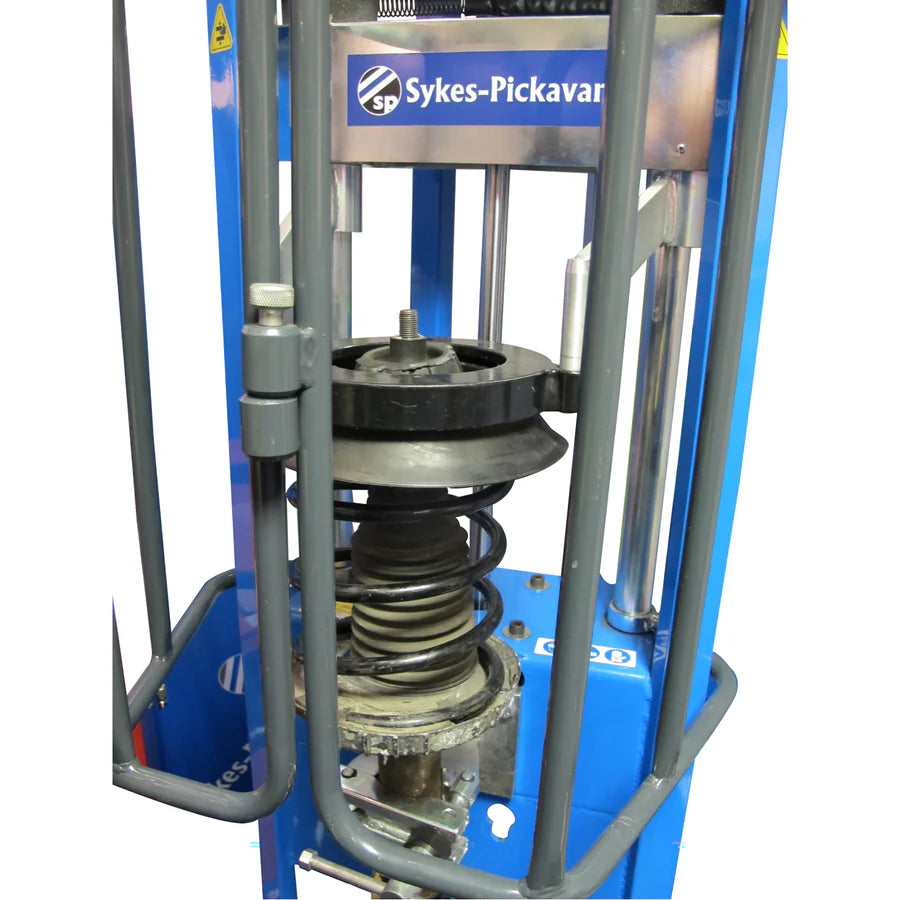

Universal piece of equipment for assembling and disassembling struts and coil springs - suitable for Cars, 4WDs and LCV's

• Automatic jaw levelling pivots to compensate and hold all coil springs including left hand coils
• Safety switch prevents operation when gates are open
• Interchangeable jaws / vice to suit different springs
• Up to 2452kg of force (at 8 bar) at the touch of a pedal

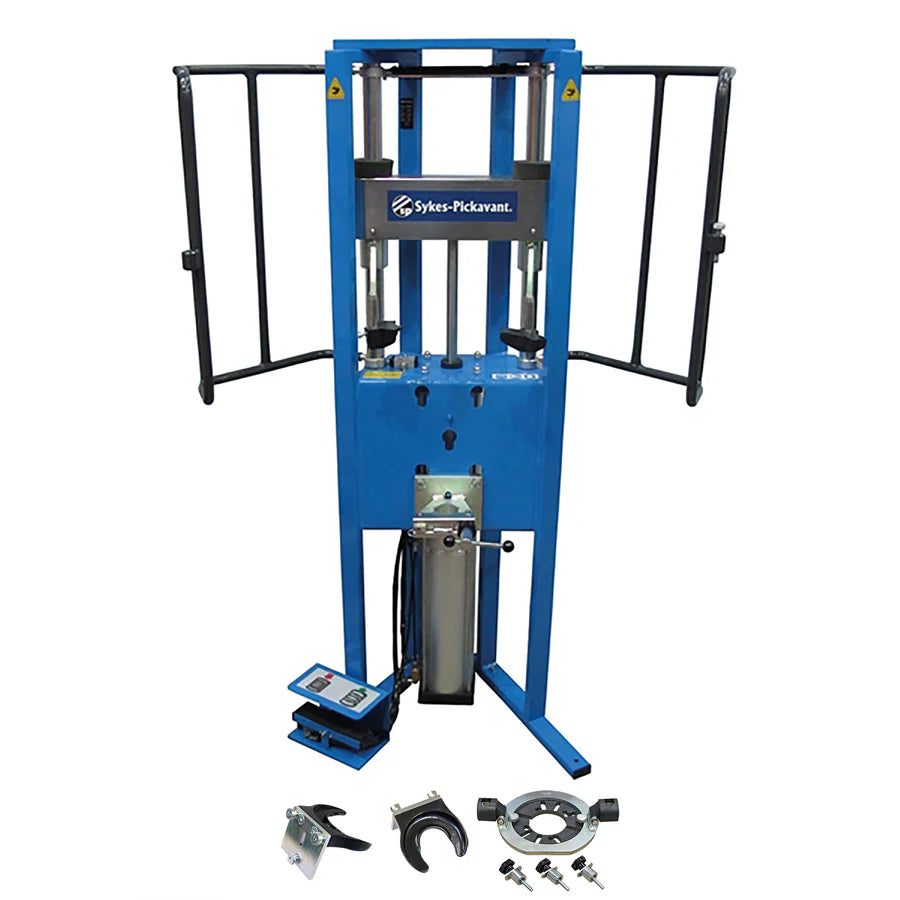

• Full height steel safety gates
• Top arms and jaws adjust and lock to secure spring
• Unique double depth front plate allows safe work on extra long strut assemblies
• 10mm floor mounting holes for insurance company compliance
• Safety cut-out for de-activation of cylinder when safety guard is opened

ALS Auto Levelling System - Auto levelling upper arms simplify working on conical and misaligned springs
Brackets System - Front and side spring clamps designed for fast changeover using unique Brackets System
Aluminium Cylinder Can be used on extra-long shock absorbers (e.g. commercials) due to the long (330mm) stroke of the cylinder. Manufactured from light alloy and resin to eliminate risk of corrosion and internal parts failure

Contents:

• Safety Guards
• Bracket A: 78 “ 130mm (38481200)
• Bracket C: 105 - 182mm (38481400)
• Strut Vice (GO332)
• Upper Top Mount Bracket (GO338)

Specifications:

• Dimensions: 1600 x 520 x 300mm
• Max Working Pressure: 8 bar (116 psi)
• Compression Force: 2452 kg (24500N)
• Cylinder Stroke: 330mm
• CE approved

Fitted with Extra Heavy Duty Pneumatic Cylinder - Ideal for Extra Heavy Duty applications i.e. SUVs, 4WDs etc where full spring compression is required

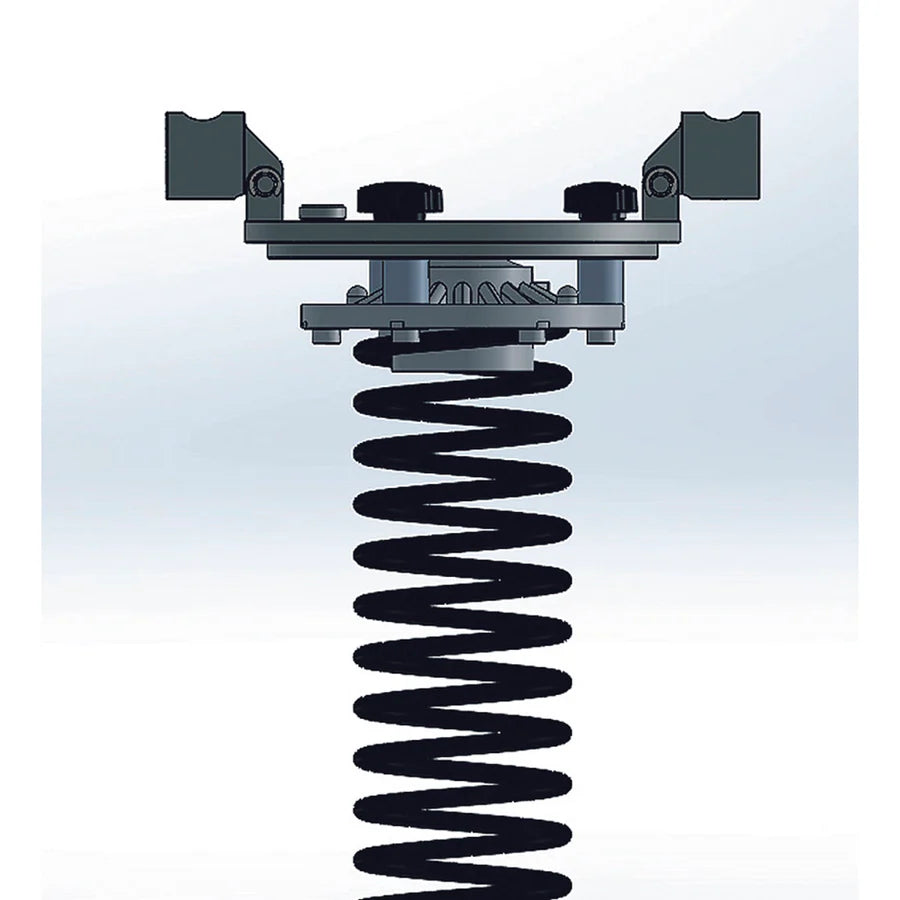

Also Includes: GO338- Upper Bracket for Spring Compressor

The design is ideal for;

• Springs with a small number of coils; meaning that one more coil can always be tensioned automatically
• Simplifying dismantling and assembly operations

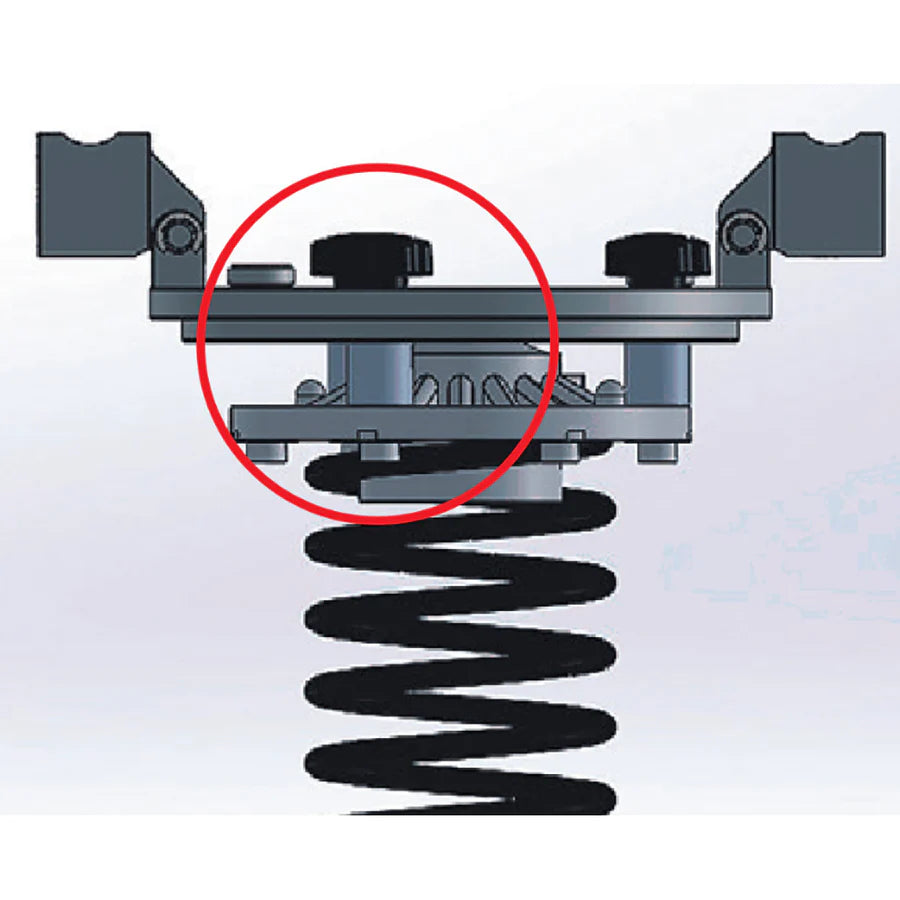

The rotatable and fixable mounting plate is provided with a universal hole division. In addition, the holder between the arms can easily be tilted. Suitable for use with Sykes-Pickavant Coil Spring Compressors.
